Valves with Stuffing Box

We produce HAAGE valves with stuffing box for the blocking and dosing of liquids in the chemical industry and technical gases in the gas industry, hydraulics, and engineering. HAAGE valves with stuffing box are designed for high purity in their gas supply, as well as for applications with low temperatures. HAAGE valves with stuffing box convince with their high leak tightness and their virtually nonexistent need for maintenance.

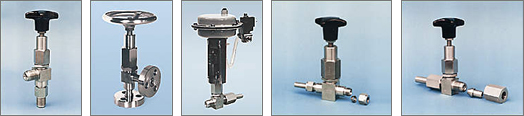

Valves with Stuffing Box

Technical Specifications
Diameter 2 to 50 mm
Pressure 10 to 1.000 bar
Max. temperature max. 550 ° C

Type of Construction
Material stainless steel, brass, special alloys like hastelloy, titanium, incoloy, etc.
Sealing type stuffing box
Connections inner or outer thread, welding, flange coupling
Operation manual or remote control through pneumatic drive
Options angle valve, globe valve



Standard and Customized Pipeline Equipment

Round Head and Welding Nipple
Welding or solder joint for tubes and valves.

Diameter 2 - 50 mm
Pressure up to 1000 bar
Max. temperature 400 ° C
Material stainless steel, brass, or special alloys



Couplings, Angles, T-Pieces, and Cross Valves
Connections of valves and fittings with T-pieces, elbows, etc., through union nuts or double nuts with metal sealing or other sealing elements.

Diameter 2 - 50 mm
Pressure up to 4.000 bar
Max. temperature 400 ° C
Material stainless steel, brass, or special alloys
Connection inner or outer thread, welding, flange coupling



All rights to technical modifications reserved.
